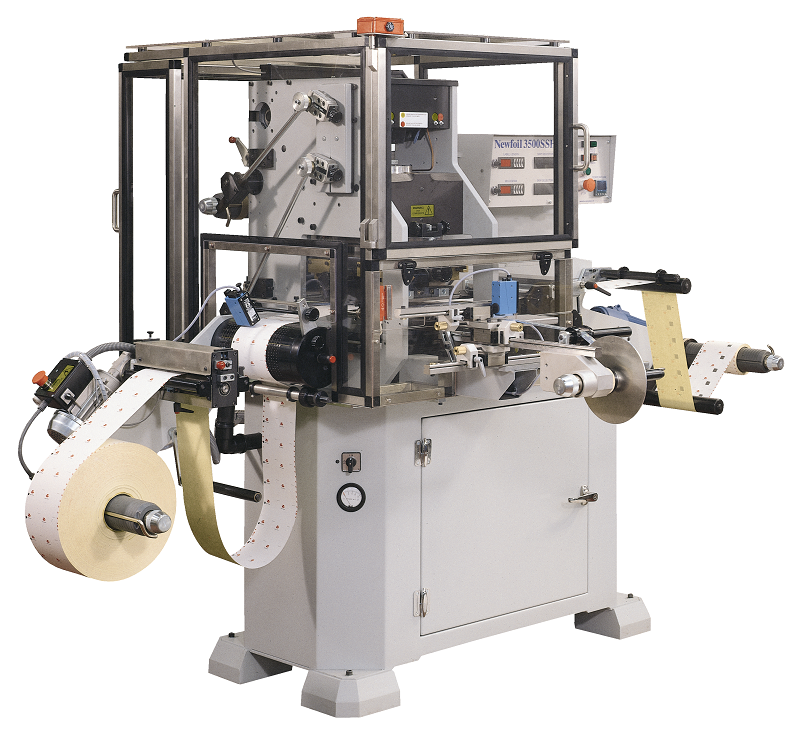

3500 SSH
3500 / 3534 SSH
Important Characteristics: 3500
- Fully adjustable 230mm x 230mm printing area
- 500mm diameter roll capacity
- 250mm web width
- Up to 18,000 cycles per hour
- Electronic Servo web feed control
- Finished label rewind
- Matrix removal
Important Characteristics: 3534
- Fully adjustable 310mm x 270mm printing area
- 500mm diameter roll capacity
- 340mm web width
- Up to 18,000 cycles per hour
- Electronic Servo web feed control
- Finished label rewind
- Matrix removal
Standard Features of The 500 Servo Series Label Systems:
- Colour touch screen (HMI)
- Digital inverter unwind drive
with laser constant loop control - Variable electronic speed control (HMI)
- Electronic web re-registration for multiple passes
- Independent servo drive
on each foil station - Foil saver / skip cycle
- Multiplate brake on foil unwind
- Variable start / stop timing of foil draw
- Data logging / hours run,
life total impressions - Micro-processor logical control system
- 2 axis integrated servos
- Servo driven – Hot stamp / embossing
- Jog, inch and single cycle
- Servo driven web draw unit
- Skip cycle for long / short web pulls
- Three phase Rewinds
with pneumatic dancing arm control - Off-site diagnostics via Ethernet with an internet connection
Optional Features for The 500 Servo Series Label Systems include:
- Flexo coating station
- top and bottom printing
- Over and under laminating
- Programmable sheeter / conveyor
- Rotary – back and rotary – scissor slitting
- MKIV Hologram re-registration unit
- Magnetic Die holding plate
- UV flat screen
- Fibre optic web re-register unit
- Variable data unwind unit (Thermal transfer or inkjet)
Tony Davies
March 7, 2016
250mm Web Width
